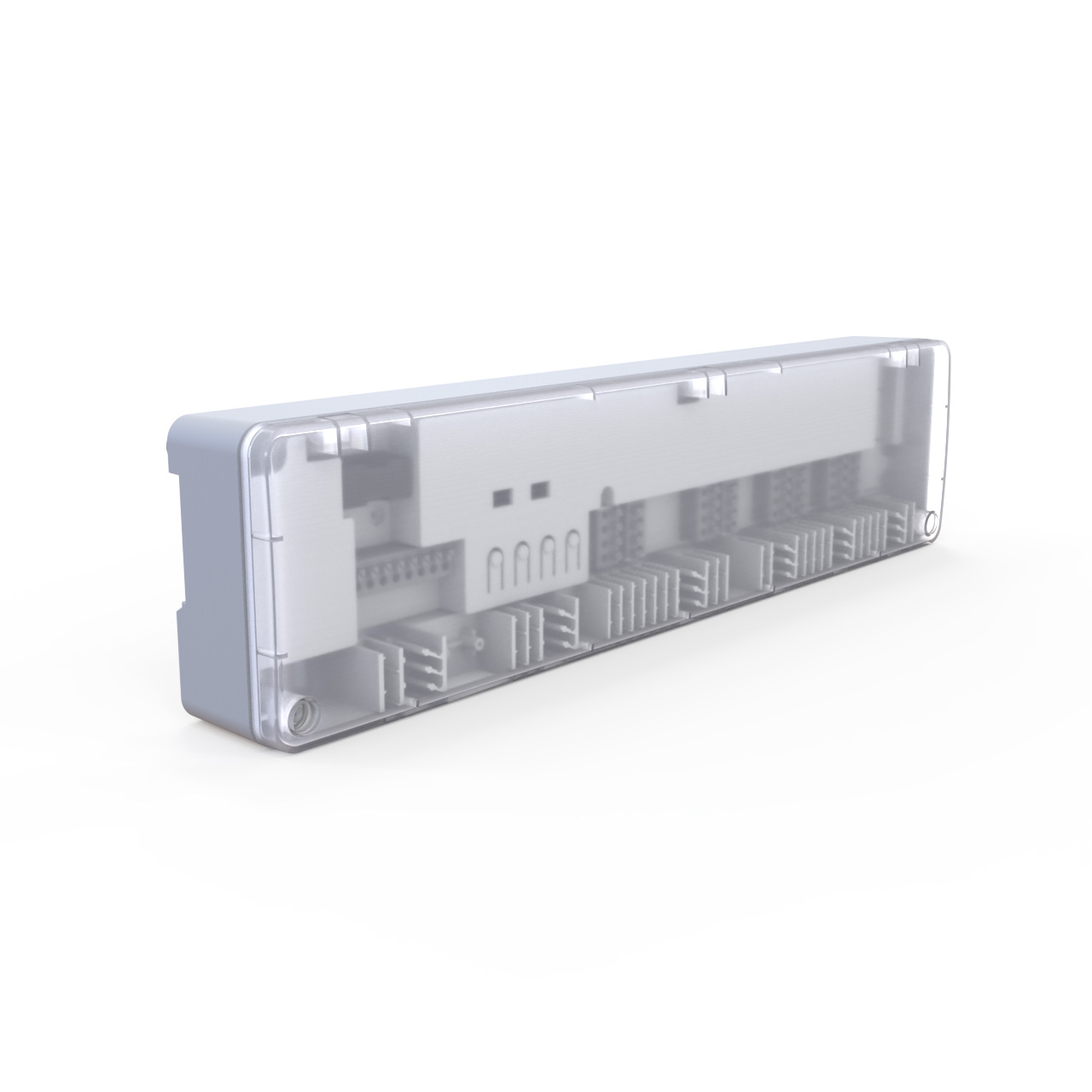

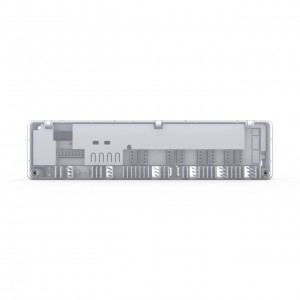

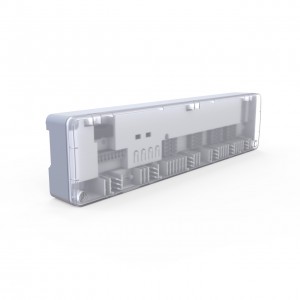

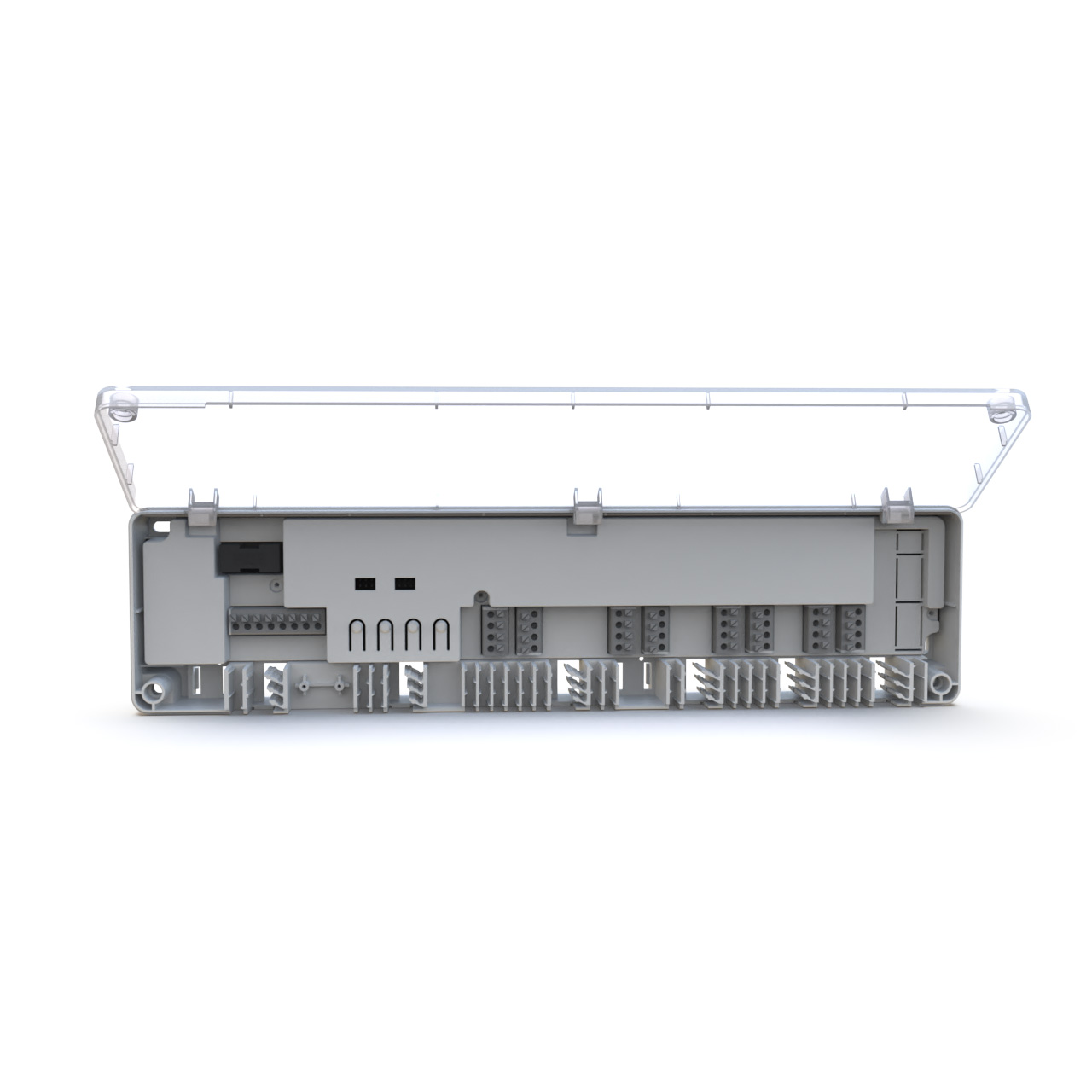

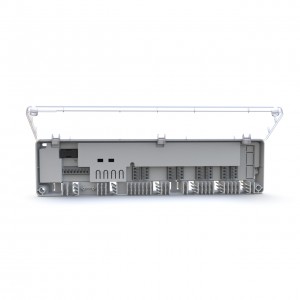

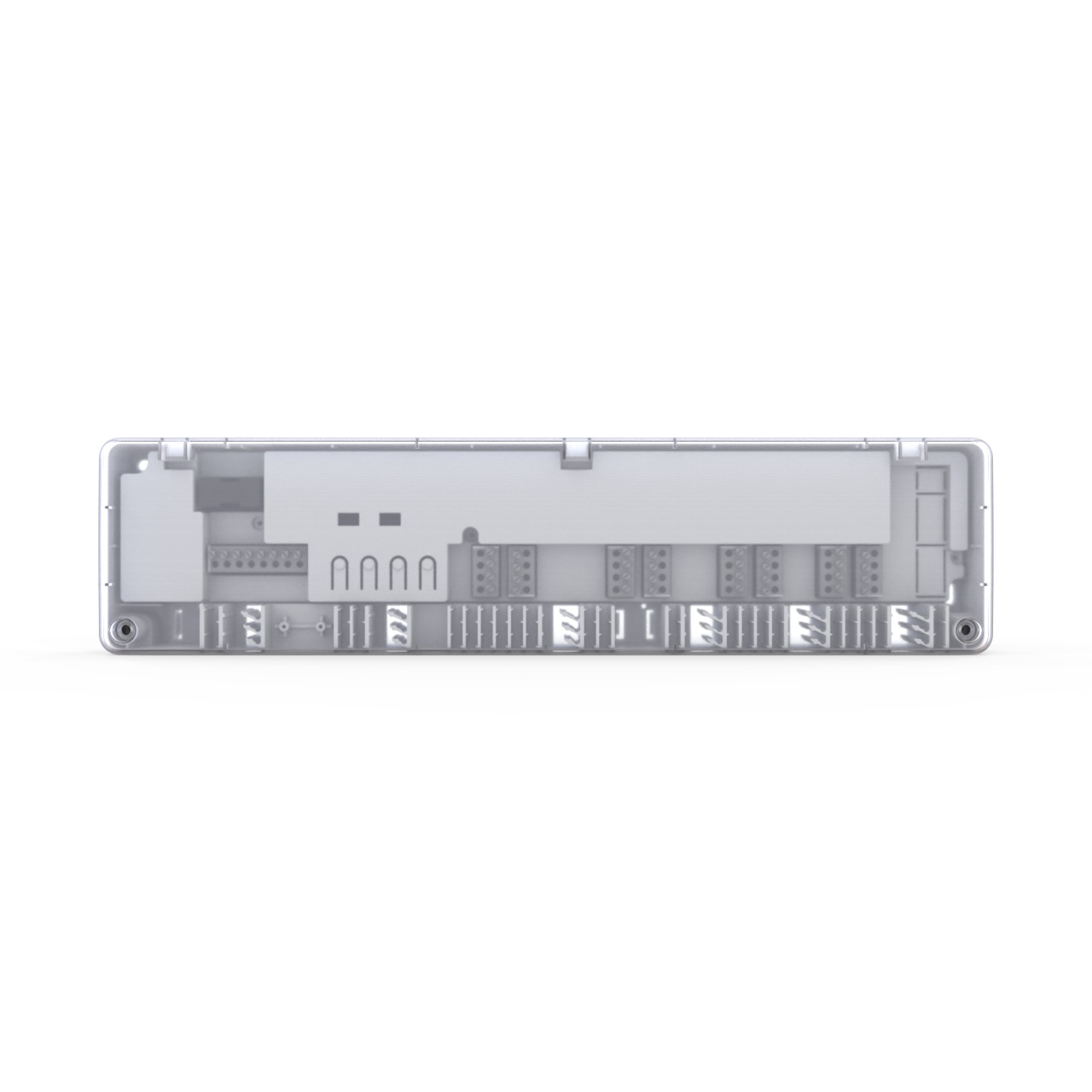

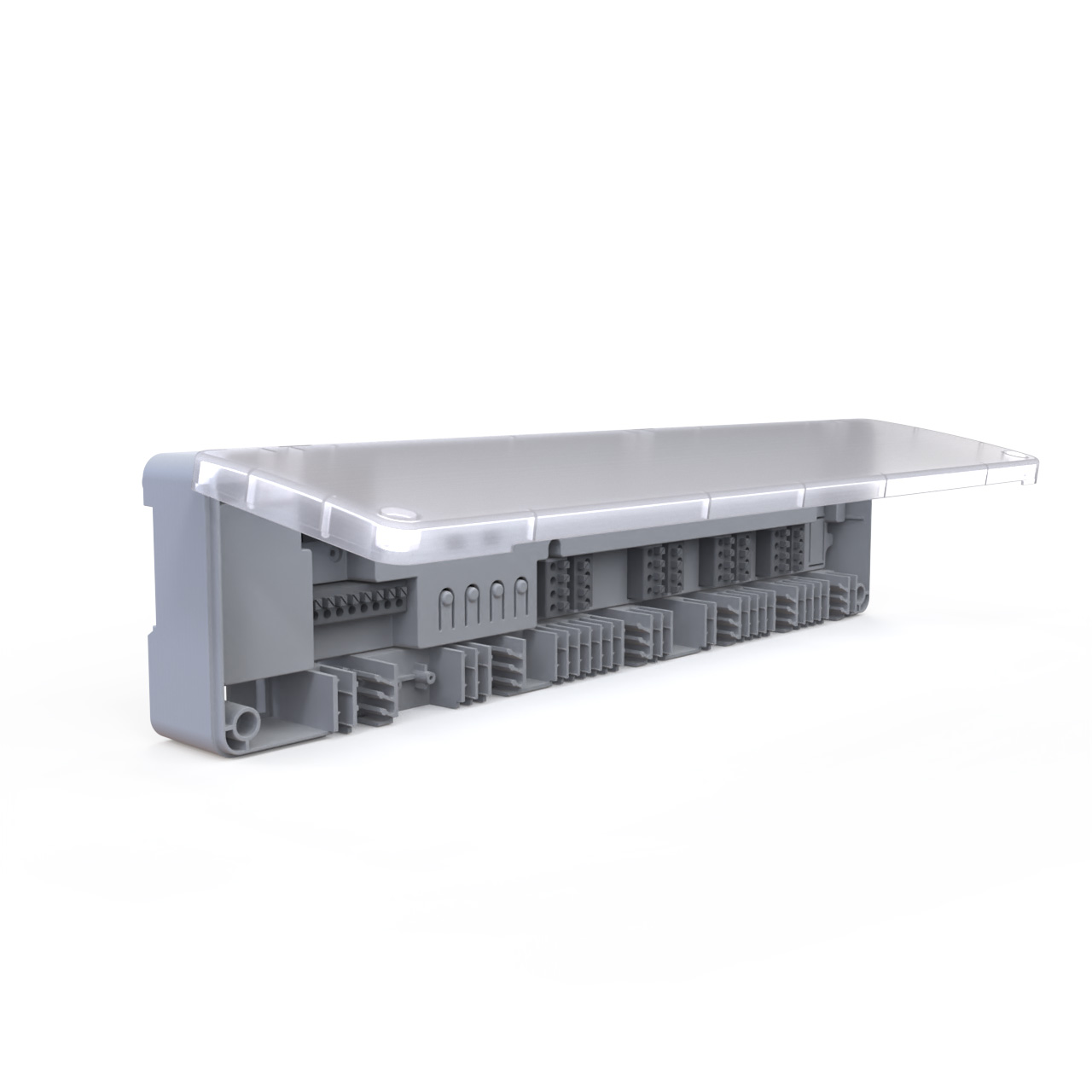

Modbus Opentherm WIFI 16 zones Wireless communicator for water underfloor centralized control heating system

Short Description:

HR-03 wireless communicator is designed to control the actuators (servo drives) of valves that control the circulation of the coolant through the heating system circuits (floor and radiator), based on radio signals
received from room thermostats, measuring the temperature in the room and comparing the values with the set ones. The communicator ensures optimal energy consumption, a comfortable climate for each individual room and the correct operation of all elements of the heating system. Performs simultaneous temperature control of max. 16 rooms (zones).

The communicator has relay outputs for controlling the operation of the boiler and circulation of pump.

Only wireless thermostats as WT-08/WT-11/WT-18/WT-20 can be used with this communicator.

Item No.: HR-03

Supply voltage: 230Vac

Boiler Ouput: Voltage-free (default) or 230V

Thermal actuator/Valves Output: 230V

Multi-Zones: 16 Zones

WIFI Function : Optional

Opentherm Protocal : Optional

Modbus: Optional

Certificate : CE, ROHS

Send email to us

Product Detail

Technical Data

FAQ

Product Tags

Previous: Modbus Opentherm WIFI Wireless communicator for water underfloor heating system

Next: 16 Zones Domestic Central Heating Zone Control Thermostat

Name	16 Zones Wireless Communicator for water underfloor heating
Power Supply	230Vac
Boiler Output	Voltage-free output
Pump Output	230Vac output
Boiler & Pump Delay Time	N/A
Thermal actuators	Each zone control up to 5pcs; NO/NC, support 230Vac or 24Vac
Ambient Temp.	0~50 ℃
Relative Humidity	85%
RF Distance	N/A
Protection Class	IP20
Thermostat Dimension	353x158x60mm
Materils	ABS+PC (Rohs certificated)
Optional Function	WIFI; Opentherm
Certificate	CE(RED/EMC/LVD), Rohs
OEM	1. Customized logo and package
	2. Customzied software ( change to customer’s user interface and control logic
	3. Customized hardware ( change the PCB and schematic based on the request)

Q1: Are you a manufacturer or trading company?
A:We are professional manufacturer of electric heating boiler, electric heating faucet and electric water heater with over 10 years experiences.

Q2: What is your sample policy?
A:Our sample fee is refundable, the sample cost can be returned to you with your bulk order.

Q3: What is the production lead time?
A:The delivery time will be according to the purchase quantity 25-35 working days.

Q4: Will you provide technical promotion support?
A:Of course, we can provide corresponding pictures and videos to you

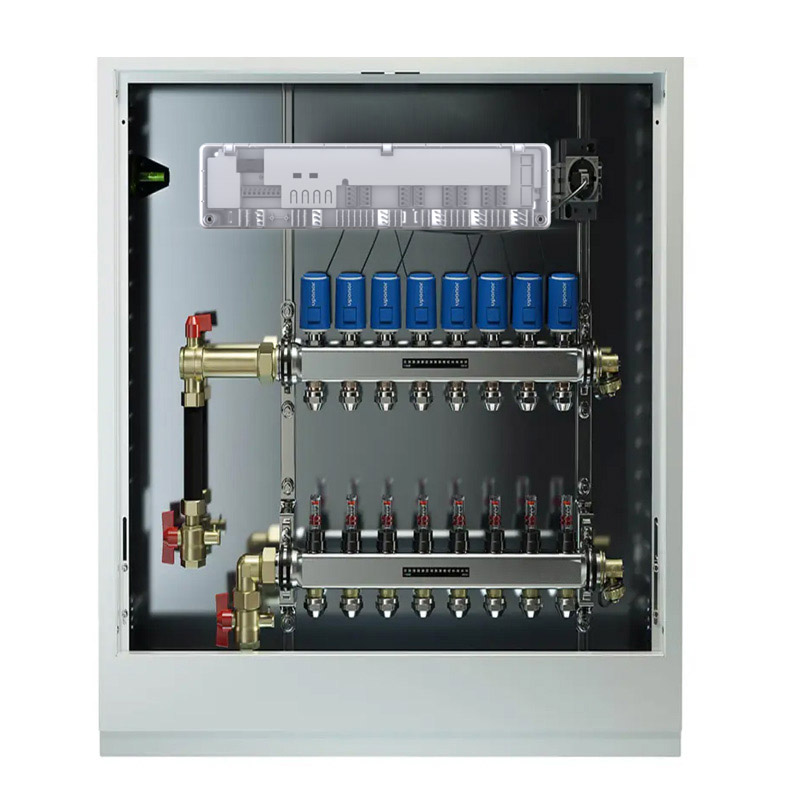

Multi-zone wiring centre
