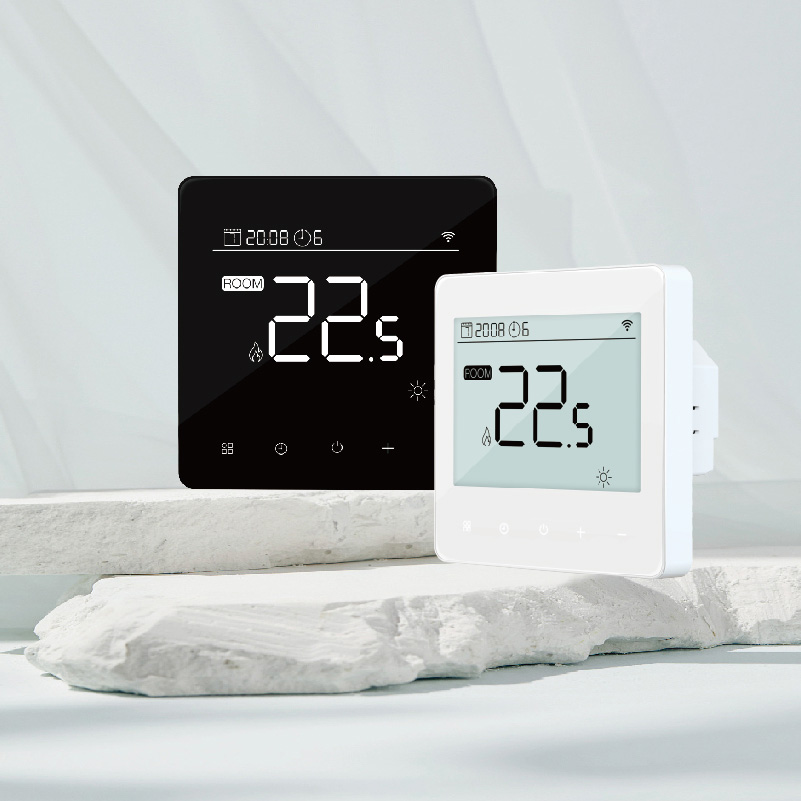

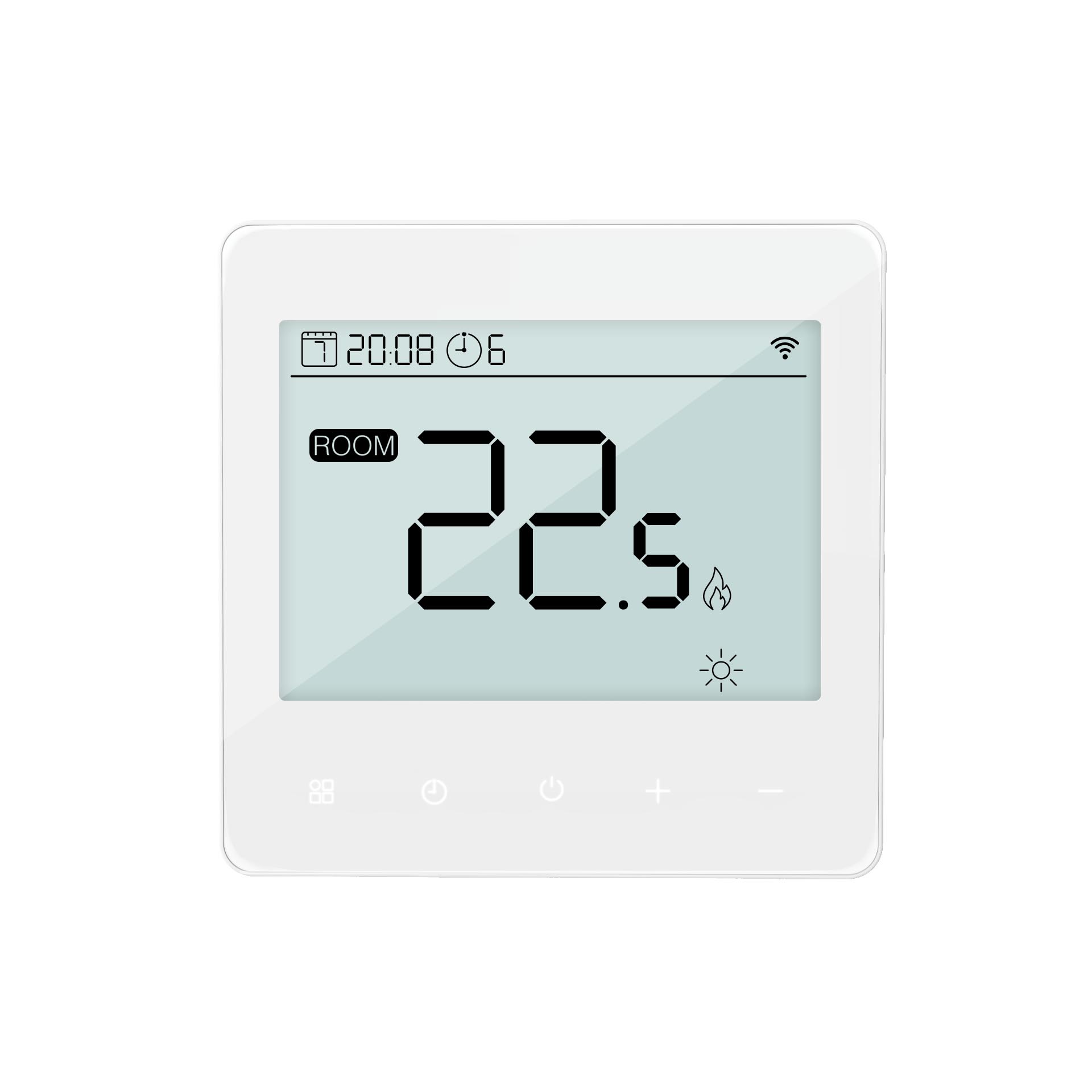

Water-Based & Electric Underfloor Heating Cooling Smart WiFi Thermostat

Short Description:

HT-66 Water-Based & Electric Underfloor Heating Cooling Smart WiFi Thermostat offers a comprehensive solution for controlling and optimizing the temperature of your underfloor heating and cooling systems. With its dual compatibility, smart WiFi connectivity, programmable scheduling, and energy-efficient operation, this thermostat provides convenience, comfort, and cost savings. Upgrade your home heating and cooling experience with this intelligent thermostat that combines modern technology with efficient temperature control.


  • Item NO.: HT-66
  • Wifi Application: Tuyasmart, Smart Life
  • Voice Control: Amazon Alexa & Google Assistant
  • Frequency: 2.4Ghz
  • Power Supply: 230VAC
  • Programmability: 7 days 4 periods
  • Packing: Neutral White Box or Custom Box
  • Unit Weight: 0.35KG
  • Certificate: CE, ROHS, RED
  • Product Detail

    Technical Data

    FAQ

    Product Tags

    The Water-Based & Electric Underfloor Heating Cooling Smart WiFi Thermostat is an innovative device that combines advanced technology with efficient heating and cooling control for underfloor systems such as gas boiler, thermal actuator, or heat pump. This intelligent touch screen programmable thermostat offers a range of features to ensure optimal comfort, energy efficiency, and convenient control.

    Dual Compatibility:
    This thermostat is designed to work with both water-based and electric underfloor heating systems, providing versatility and compatibility for various setups. It allows you to connect and control the thermostat with either type of heating system, offering flexibility in installation and usage.

    Heating and Cooling Capabilities:
    Not only does this smart thermostat regulate the temperature for heating purposes, but it also provides cooling capabilities. With this feature, you can maintain a comfortable indoor climate throughout the year, adjusting the temperature according to your preferences.

    Smart WiFi Connectivity:
    The integration of WiFi connectivity enables remote access and control of the thermostat through a dedicated mobile app or compatible smart home systems. You can conveniently monitor and adjust the temperature settings from anywhere, ensuring your home is preheated or cooled before your arrival.

    Programmable Scheduling:
    The digital wlan smart thermostat supports programmable scheduling, allowing you to set different temperature levels based on your daily routine. You can create personalized heating and cooling schedules for each day of the week, optimizing energy consumption by automatically adjusting the temperature when needed.

    User-Friendly Interface:
    The new arrival modern design room thermostat features a user-friendly interface, typically with a touchscreen or push-button controls for easy operation. The information displayed on the screen is clear and intuitive, providing real-time temperature readings and status updates.

    Heat Pump Smart Touch Thermostat WIFI Heating Cooling




    https://www.etopthermostat.com/products/

    https://www.etopthermostat.com/products/

    https://www.etopthermostat.com/products/



  • Previous:
  • Next:

  • Display Tempered Glass Touch  Display
    WiFi Application  TuyaSmart, Smart Life, Ecohome Life ( Tuya cloud)
    WIFI  2.4G( Don’t support 5G)
    Power Supply 230Vac
    Current 16A  230Vac output for electric heating control
    3A NO, NC for thermal actuator control
    3A NO, NC, COM Voltage-free output for gas boiler control
    Set Temp. Range 5~35 ℃
    Ambient Temp. 0~50 ℃
    Frost Protection Temp. 5 ℃ ~15℃
    Floor Protection Temp. 20 ℃ ~80 ℃
    Sensor Select Internal sensor & External Sensor
    Sensor Type NTC β=3950 R25℃=10KΩ
    Relative Humidity 85%
    Accurancy ±0.5 ℃
    Modes MAN/Holiday/PRG Mode
    Programmability 7 days 4 periods ( Customizable)
    Window Open Detection Yes
    Child Lock  Yes
    Protection Class IP20
    Thermostat Dimension 86X86X16.1mm
    Material ABS+PC (Rohs certificated)
    Certificate CE(RED/EMC/LVD), Rohs
    OEM & ODM 1. Customized logo and package
    2. Customzied software ( change to customer’s user interface and control logic)
    3. Customized hardware ( change the PCB and schematic based on the request)

    Q: Are you manufacturer?
    Yes. ETOP is a professional ODM&OEM Thermostat manufacturer since 2003.

    Q: Can i put my brand logo on thermostats?
    A: Yes. It’s free when MOQ 500pcs.

    Q: Can i have custimized packing box?
    A: Yes. MOQ 1000pcs.

    Q: What’s the delivery time after i place the order?
    A: In 3 working days for samples and 25 days for mass production.

    Q: What’s the warranty?
    A: 1 year.

    Q: Is the thermostat wifi control?
    A: Yes. It’s smart phone app control, compatible with Android and IOS.

    Q: Does the thermostat support Amazon Alexa and Google Assisstant?
    A: Yes.
